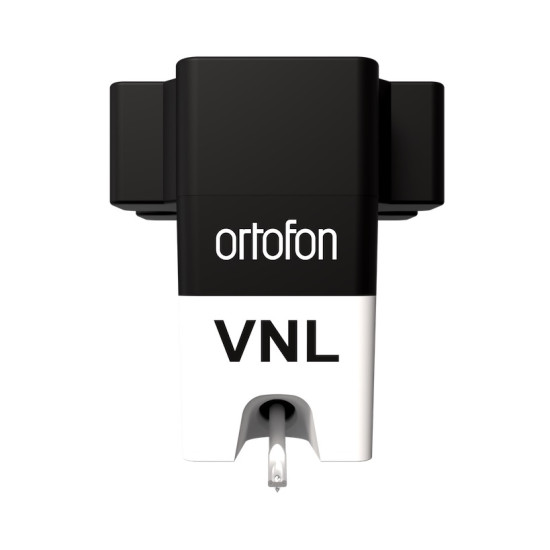

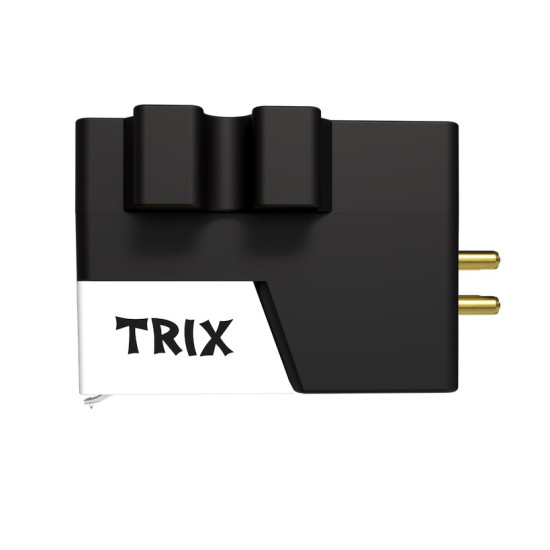

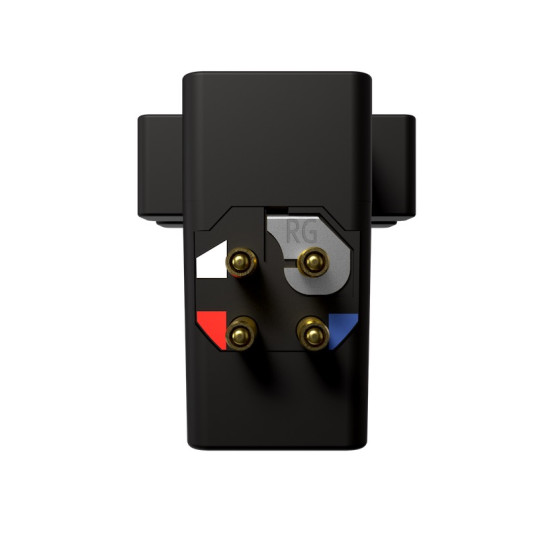

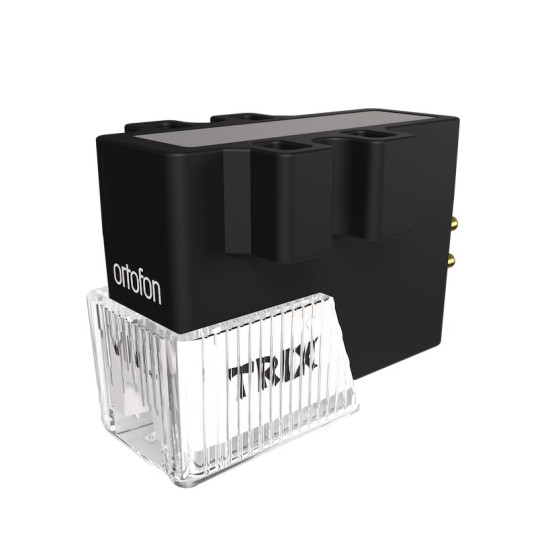

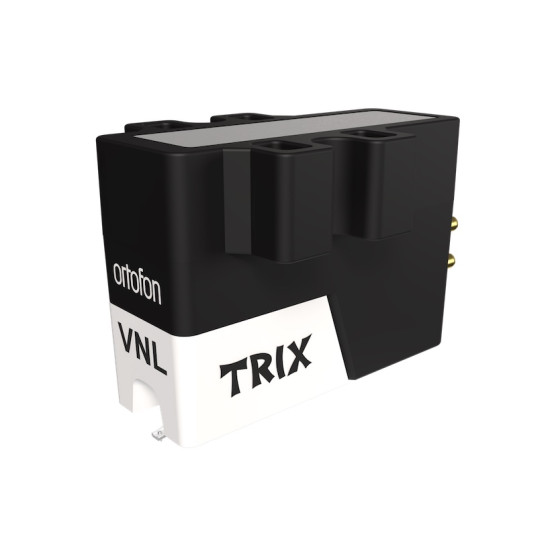

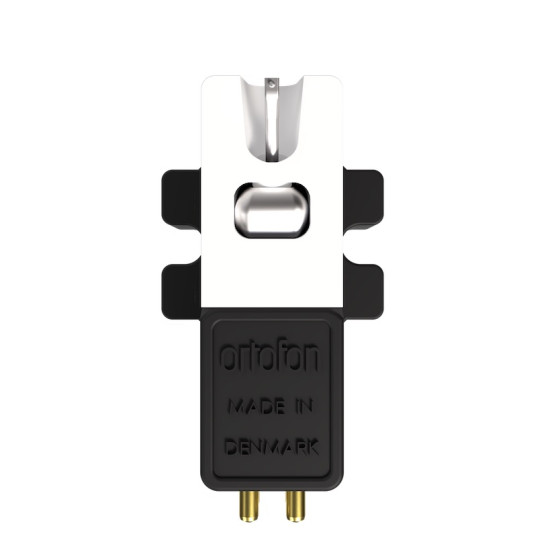

Ortofon VNL Trix Cartridge With Stylus

VNL TRIX

Ortofon just leveled up with the all-new VNL TRIX and VNL DANCE, the latest additions to the iconic VNL series. Built tough, tuned for performance, and ready for the stage. The VNL TRIX and VNL DANCE cartridges are engineered for DJs who demand both power and precision.

LOUD. CLEAN. POWERFUL. Pumping a massive 10 mV output, these carts deliver raw volume and crystal clarity to any rig, from underground raves to big-room stages. Louder than ever before, they bring pure energy to the system. VNL TRIX, with a spherical stylus mounted on a rigid aluminum cantilever and Ortofon’s exclusive rubber suspension, VNL TRIX is built to take a beating. The fluorescent white stylus makes cueing even faster, and the premium tracking keeps it locked for pro use including heavy scratching and back-cueing. VNL TRIX is fully VNL-compatible, letting you swap styli to match your vibe and flow.

KEY FEATURES • 10 mV Output – Loud. Clean. Powerful. • Rock-Solid Tracking – Perfect for scratching and back-cueing. • Interchangeable Stylus – Maximum flexibility adapts to any set. • Fluorescent Stylus – Find your mark, even in the dark under UV light. • Next-Level Sound – Rich sound with clarity, and punch across every genre.

Specifications

Output voltage at 1 kHz, 5cm/sec

10 mV
Channel separation at 1 kHz
22 dB
Frequency response 20 Hz - 20 kHz
+/-3 dB
Tracking ability at 315Hz
100 μm
Compliance, dynamic, lateral
12 μm/mN
Cantilever material
Aluminium
Stylus type
Spherical
Stylus tip radius
R 18 μm
Tracking force, recommended
4.0 grams
Coil wire material
OFC
Cartridge colour
Black
Cartridge weight
7 grams
Recommended load resistance
47 KΩ
Stylus colour
White
