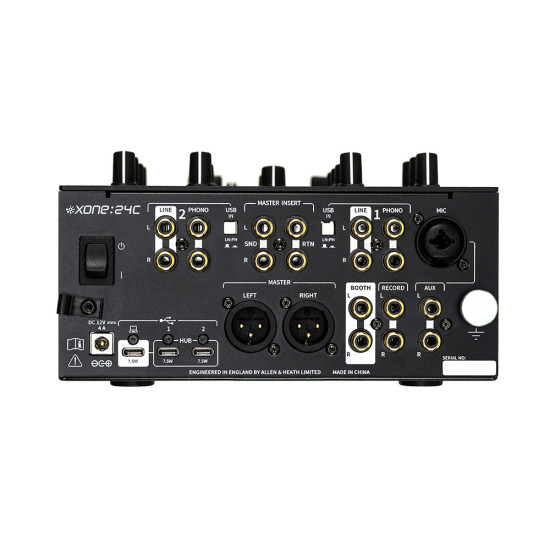

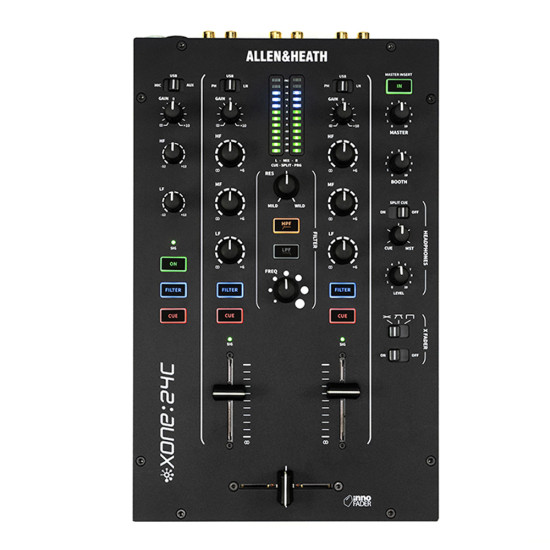

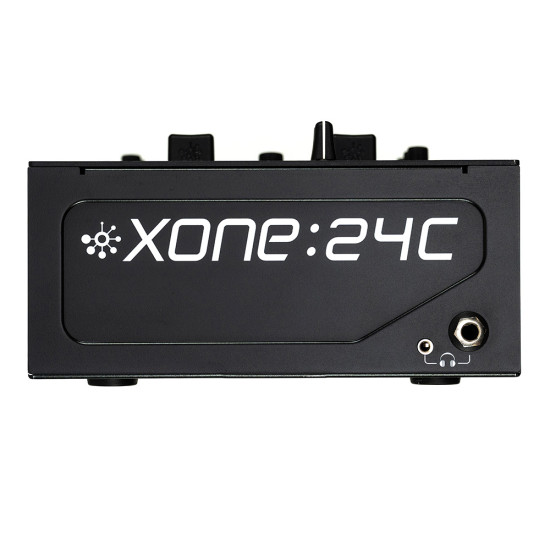

Allen and Heath Xone:24C USB DJ Mixer

Xone:24C is a compact 2+1 channel hybrid DJ mixer that blends analogue sound quality with flexible digital connectivity.

Building on the foundations of the all-analogue Xone:24, the Xone:24C adds a high-quality USBC interface and powered USB hub for easy integration with DVS, streaming, and production setups.

Essential Tools. Professional

Sound Built for smaller spaces, home setups, or mobile rigs, Xone:24C delivers the same core tools found in flagship Xone mixers - including the Xone filter and mini InnoFADER - in a compact and accessible format. It doesn’t matter if you’re learning your craft, performing live, listening at home, or creating in the studio, the Xone:24C offers a no-compromise path into the world of Xone.

The Sound of Analogue

At the heart of the Xone:24 is the meticulously engineered all-analogue signal path, designed to deliver the clarity, warmth and punch that define the Xone sound.

A pair of high-gain, low-noise RIAA preamps ensures faithful reproduction of vinyl sources, while the matched Phono/Line inputs allow seamless switching between decks and digital players without compromising gain structure.

The 3-band isolator EQ offers precise, creative control for sculpting your mix, from swapping bass lines to expressive transitions.

Underpinning it all is carefully tuned, pure analogue summing that delivers deep, powerful low end and open, detailed highs, giving your mixes that professional full-bodied sound that can only be achieved in an analogue mixer.

Hybrid Workflow. Simplified

Whether you're using timecode vinyl, streaming live sets, or integrating with a DAW, Xone:24C offers plug-and-play digital connectivity while retaining the unmistakable feel and sound of a true analogue mixer.

Its class-compliant 96kHz USB audio interface delivers pristine sound quality with three operating modes - Streaming, DAW, and DVS Pro – to simplify setup.

The powered USB-C hub ports allow connection of controllers like the Xone:K series, or any class-compliant USB-C MIDI/audio device, creating a simple, centralised connection hub.

Additionally, MIDI is output from key mixer controls to the connected host system.

 Features:

Analogue signal path:

o Low-noise, high-gain RIAA preamp.

o 3-band isolator EQ.

o Warm pure analogue summing.

o Matched Phono/Line inputs.

Classic Xone:VCF (Voltage Controlled Filter)

Mini InnoFADER crossfader.

Master insert / FX with switch.

Tactile illuminated switches with backlight.

Latching/non-latching Cue modes.

RGB chromatic channel meters.

USB-C Audio/MIDI Interface:

o 96kHz, 24-bit, class-compliant operation (Mac, Windows, iOS)

o 3 modes:

• Stream

• DVS Pro

• DAW

o MIDI Output from:

• Mini Innofader

• Filter: HPF / LPF & Freq

• Channel: Filter, Cue, Faders

• Master Insert In

Dual-port powered USB hub

Model Xone:24C

Type Hybrid: Analogue + Internal USB-C Soundcard and Dual-port USB-C hub

Channels 2 + 1: CH1 & CH2: PHONO/USB/LINE ¦ AUX CH: MIC/USB/LINE

EQ

3-band Isolator EQ: -∞/+6dBu (CH1 & CH2)

High Frequency 3.5kHz

Mid Frequency: 1.1kHz

Low Frequency: 500Hz

2-band: +/- 12dBu (Auxiliary Channel)

High Frequency 900Hz

Low Frequency: 750Hz

Line Inputs 3 x Stereo RCA (CH1 & CH2 + AUX CH)

Phono Inputs 2 x Stereo RCA (CH1 & CH2)

Mic Input 1 x Combi (XLR + TRS)

Master Output 1 x Stereo XLR (Balanced)

Booth Output 1 x Stereo RCA (Un-balanced)

Record Output 1 x Stereo RCA (Un-balanced)

Master Insert 1 x Stereo RCA MASTER INSERT FX Loop*

*Send/Return I/O 1 x Stereo RCA MASTER INSERT Send

1 x Stereo RCA MASTER INSERT Return

*FX Send MASTER INSERT IN

Filter

1 x Stereo Analogue Voltage Controlled Filter

HPF / LPF

Adjustable Frequency & Resonance

Assignable CH 1 & CH2 + Aux CH

Headphones

1 x 6.35mm Stereo Jack

1 x 3.5mm Stereo Jack

Split Cue Monitoring

Channel Faders 45mm Linear Voltage Controlled Amplifier

Chanel Meters Single tri-colour LED

X-Fader 45mm Linear VCA: mini InnoFADER®

X-Fader Curve Settings 2 Types (Fast-Cut/Blend)

Internal Soundcard 6 Channel ¦ 32-bit/96kHz ¦ USB 2.0

3 x Stereo In (CH1/CH2/Master) ¦ 3 x Stereo Out (CH1/CH2/Aux CH)

MIDI Assignable YES: MIDI CC: CH1 & CH2 Faders, Crossfader, VCF FREQ

NOTE ON/NOTE OFF: CUE, FILTER, HPF, LPF, MASTER INSERT IN

MIDI Out 1 x USB Host Port (Type C)

2 x USB Hub ports: Hub-to-Host/Host-to-Hub only (Type C)

Earth Ground Terminals x 1

Power Supply

DC Mains: 100 to 240V

AC 50/60Hz

Consumption 35W max

USB Power delivery: USB Host 7.5W (Type C) ¦ USB Hub 2 x 7.5W (Type C)

Mains Adaptor 2 pin DC socket with cable clamp
