Crown XTi 2002 Amplifier

Crown XTI2002 Power Amplifier 475W @ 8 Ohms

• 2 Ohms Stereo (per ch.) 1000W
• 4 Ohms Stereo (per ch.) 800W
• 8 Ohms Stereo (per ch.) 475W
• 8 Ohms Bridge-Mono 1600W
• 4 Ohms Bridge-Mono 2000W

There's no debate - when you choose Crown's XTi 2 Series, you're choosing one of the most powerful and innovative amplifiers on the market today. That's because the all-new XTi 2 Series amps continue to set the standard for unmatched performance and value, delivering the goods night after night without breaking a sweat.

Next Generation Features:

• Peakx Plus Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
• Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
• 3 User-defined fan mode controls - normal, early and fullspeed - for matching fan performance to a specific application
• New system monitoring provides software visibility of AC line voltage and power supply temperature
• Integrated cast-aluminum handles for easy handling and enhanced durability
• Locking power cord clip provides a secure connection between the amplifier and power cord
• Updated HiQnet Band Manager and System Architect control software
• Increased number of presets to a total of 30; 29 of which are user definable

PERFORMANCE

Input EQ:
6 parametric filters per channel with adjustable Q, ±15 dB boost/cut. Also adjustable high and low shelving filters. This 8-filter EQ section can be bypassed.

Crossover Filters:
Highpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave. Linkwitz-Riley 24/48 dB per Octave. Also includes ± 15 dB bandpass gain and polarity control

Output EQ:
8 parametric filters per channel with adjustable Q, ±15 dB boost/cut. This 8-filter EQ section can be bypassed.

Delay:
For signal alignment of driver; 50 mS of total delay.

SubHarmonic Synth:
Takes the low-frequency content of the input signal and "synthesizes" a new signal that is the same as the input signal but one octave lower. The new synthesized signal is then mixed with the original signal to create the effect. New: Users now have control over frequency, gain, and filter type.

Peakx Plus Limiter:
User defeatable limiter that allows users to control Threshold, Attack, and Release times.

Presets:
30 total presets, 29 of which are user-definable.

Sensitivity (for full rated power at 4 ohms):
1.4 Vrms

Frequency Response (at 1 watt, 20 Hz - 20 kHz):
+0 dB, -1 dB

Signal-to-Noise Ratio (below rated 1kHz power at 8 ohms):
100 dB (A weighted)

Total Harmonic Distortion (THD):

• Damping Factor 20 Hz to 1 kHz
• Crosstalk (below rated power)
• 20 kHz - 1 kHz: > 70 db
• Input Impedance (nominal)
• 20k ohms balanced, 10k ohms unbalanced

Maximum Input Signal:

• +22 dBu typical
• AC Line Voltage and Frequency Configurations
• 100 VAC, 120 VAC, 220-240 VAC 50/60 Hz

AC Line Current:
6.8A; no more than 38W at idle

Operating Temperature:
0°C to 40°C at 95% relative humidity (non-condensing)

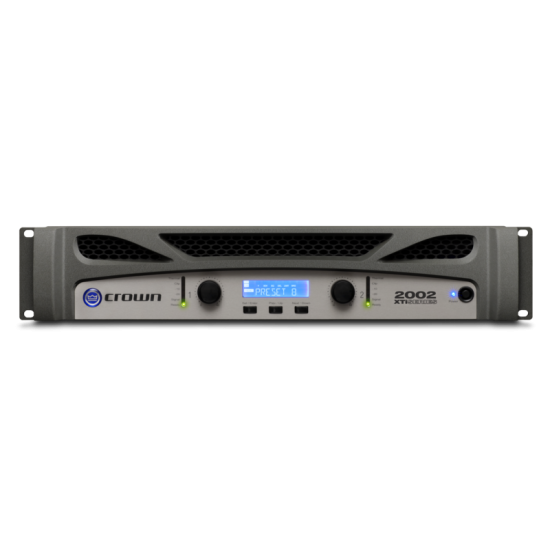

Level:

• Two front-panel rotary level controls, one for each channel
• Power Switch
• On/Off switch applies AC power to the amplifier
• Sel/Prev/Next Buttons
• Three buttons near the LCD screen that are used to access menu items and front panel lockout
• LCD Screen
• Backlit liquid crystal display that shows preset and processing status

INDICATORS

Signal Indicator:
Green LED, one per channel, illuminates when a very low-level signal is present at input (may be used for troubleshooting cable runs).

• 10 Indicator:

Green LED flashes when output signal exceeds -10 dB below clip.

• 20 Indicator:

Green LED flashes when output signal level exceeds -20 dB below clip.

Ready Indicator:
Green LED, one per channel, illuminates when the amplifier is ready to produce audio.

Clip Indicator:
Red LED, one per channel, turns on at the threshold of audible distortion

Temp Indicator:
Red LED, one per channel, illuminates under excessive temperature conditions

Power Indicator:
Blue LED illuminates when the amplifier has been turned on and has power

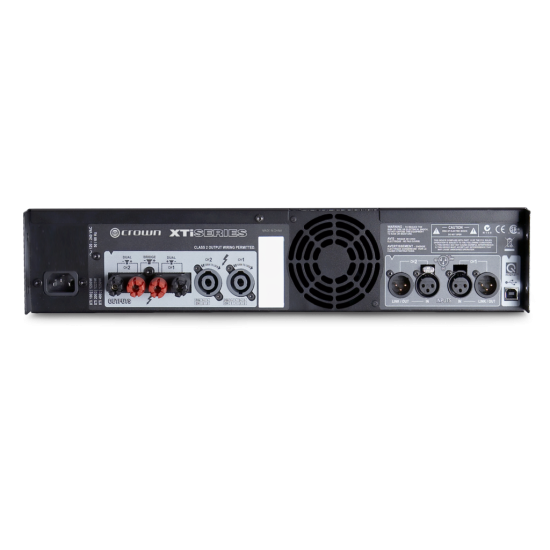

CONNECTORS

Input Connectors:

• XLR, one per channel
• Link/Out Connector
• Loop-thru signal from input connector for linking another amplifier, one per channel.

Output Connectors:

• Two Neutrik Speakon NL4MP output connectors. Channel-1 Speakon is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon connectors).
• HiQnet USB Connector
• Type B, connects to HiQnet network.

CONSTRUCTION

Chassis: Steel

Front Panel: Cast-aluminum

Cooling: Proportional speed fan with front-to-rear airflow.

Dimensions: 19" (W) x 3.5" (H) x 12.25" (D)

Net Weight: 18.5 lbs (8.4kg)
